QYYFF Type Oil Submersible Power Cable

Purpose

This product is suitable for supporting power supply for oil submersible pump units with rated voltage less than 3KV or less than 6KV.

Usage Characteristics

Conductor long-term working temperature is 232°C, with good oil resistance, heat resistance, and corrosion resistance.

Model

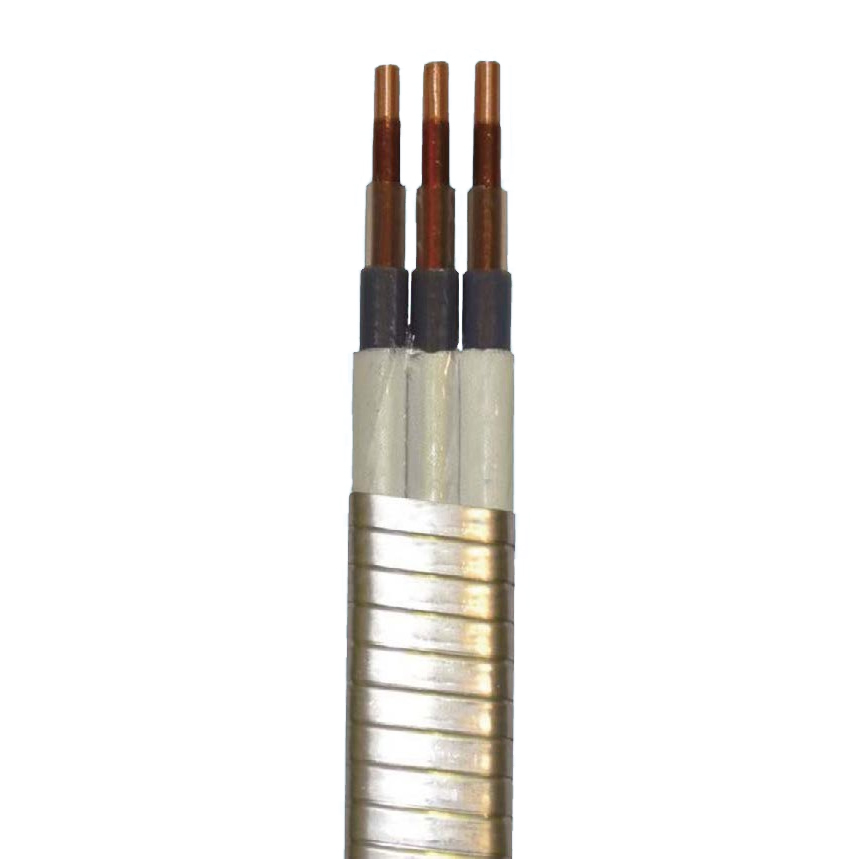

Polyimide - F46 composite film sintering / fluoropolymer combined insulation, fluoropolymer sheath, fiber tape winding, galvanized (stainless steel, Monel) steel tape armored flat submersible pump power cable.

Production Range

Voltage: 3KV, 4KV, 5KV, 6KV

Temperature: 232°C

Execution Standard: GB/T16750-2015, API RP 11S6

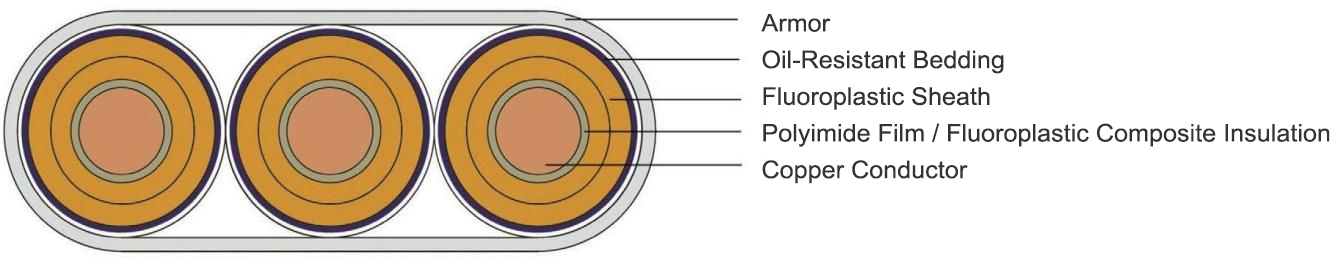

Structure Diagram

Technical Performance:

Quantity of Core	Nominal Cross Section AWG /mm2	Number of Conductors / Diameter mm	Conductor DC resistance 20℃ ≤ Ω/Km	Insulation Nominal Value Thickness mm		Sheath Nominal Value Thickness mm		Cable Dimensions and Weight (flat cable)
			Conductor DC resistance 20℃ ≤ Ω/Km	Insulation Nominal Value Thickness mm		Sheath Nominal Value Thickness mm		3KV		6KV
			NO Tinplating	3KV	6KV	3KV	6KV	mm×mm	Kg/Km	mm×mm	Kg/Km
3	7/10	1/3.67	1.83	1.07	1.27	0.6	0.6	9×24	799	9.5×25	845
3	6/13	1/4.12	1.39	1.07	1.27	0.6	0.6	9.5×25	833	10×27	881
3	5/16	1/4.62	1.15	1.07	1.27	0.6	0.6	10.4×28	977	11×29	1032
3	4/20	1/5.19	0.84	1.07	1.27	0.6	0.6	11×29	1084	11.5×30.5	1143

Nominal Cross-sectional Area mm2/AWG	Nominal Diameter of the Conductor	1.07 mm Insulation Resistance MΩ·Km	1.07 mm Leakage Current μA/ (Kv·Km)	1.27 mm insulation resistance MΩ·Km	1.27mm Leakage Current μA/ (Kv·Km)	DC withstand voltage - 5 minutes
Nominal Cross-sectional Area mm2/AWG	Nominal Diameter of the Conductor	1.07 mm Insulation Resistance MΩ·Km	1.07 mm Leakage Current μA/ (Kv·Km)	1.27 mm insulation resistance MΩ·Km	1.27mm Leakage Current μA/ (Kv·Km)	3KV	6KV
10/7	3.67	4255	0.34	4922	0.3	27	35
13/6	4.12	3822	0.38	4442	0.33	27	35
16/5	4.62	3500	0.41	4082	0.38	27	35
20/4	5.19	3195	0.45	3738	0.40	27	35

Delivery Requirement:

Delivery can be made within a minimum of 1,000 meters, and it will be packed in full steel corrugated boxes.

Storage and Transportation Instructions:

For the rolled-delivered cables, the outermost layer of the cable should be 100 mm away from the edge of the corrugated all-steel cable reel. The cables must not be knocked against or twisted. Both ends of the cable should be protected against moisture.
